48V 1000W / 250W Electric Bike Conversion Kit – MTX Rear Wheel & Battery – 7-11 Speed Cassette – 26″ 27.5″ 29″ E-Bike Upgrade

48V 1000W / 250W Electric Bike Conversion Kit

MTX Rear Wheel & Battery – 7-11 Speed Cassette – 26″ 27.5″ 29″ E-Bike Upgrade

⚠️ Important — Please Select the Correct Variation

• This listing has six variations available at the top of the page.
  You must select both:
  🛞 Your required wheel size
  🔋 Whether you want the wheel conversion kit only or the wheel conversion kit with a battery
  A battery is not automatically included with every variation.
  If you select a variation that says “Kit Only”, you will receive the complete wheel conversion kit without a battery or battery charger.
  If you select a variation that says “Kit + Battery”, you will receive the complete wheel conversion kit together with the battery and charger described below.

🛒 How to Choose Your Kit

• Before adding the item to your basket, please use the variation menu at the top of the listing to choose the correct option.

  🛞 Select the correct wheel size for your bike.
  📦 Select Kit Only if you already have a suitable battery.
  🔋 Select Kit + Battery if you require the battery and charger to be included.
  ⚠️ Please check the full variation title carefully before ordering. If you are unsure which variation to select, please send us a message before ordering and we will be happy to help.

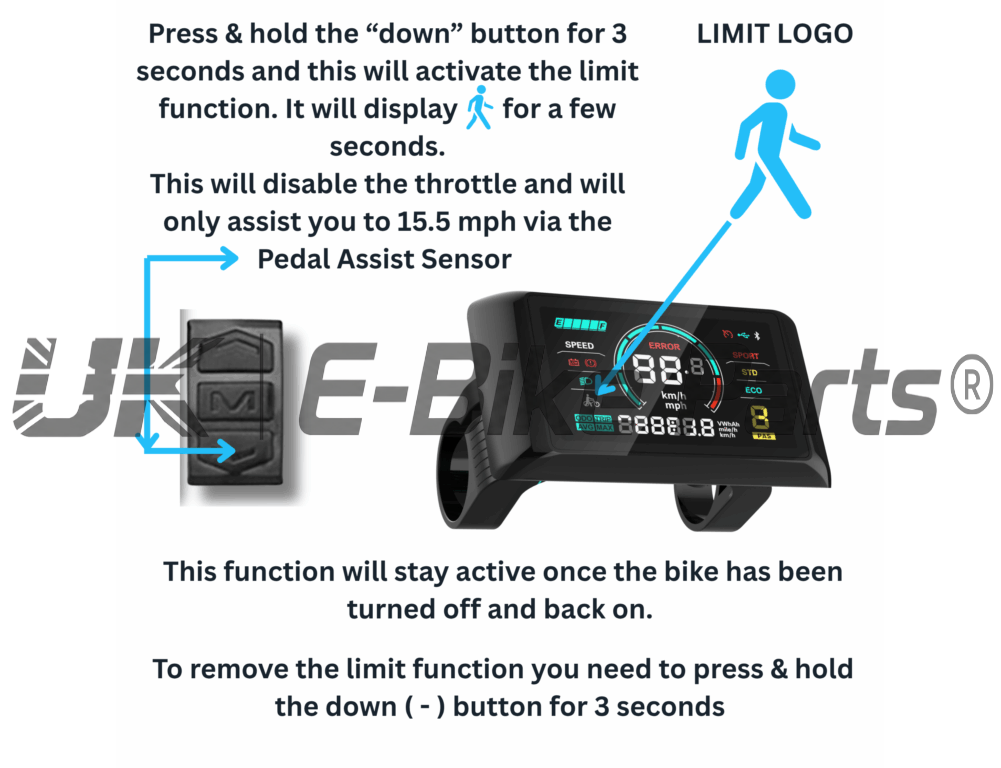

⚙️ New Version – Built-In Display Limiter

• This is our latest-generation kit, now featuring an integrated limiter directly on the display — no remote key is required ✅
  ✅ Limited mode: Activate by holding the “–” button on the display for approximately 3 seconds. This limits the speed to 15.5mph / 25km/h and caps the output to a 250W equivalent.
  ✅ Throttle disabled: The throttle is automatically disabled while the limiter mode is active.
  ✅ Full-power mode: Deactivate the limiter to unlock up to 1000W+ performance for use on private land and off-road areas where permitted 🚀⚡
  💡 The limiter setting is stored after the system is switched off, so it does not need to be reactivated every time the bike is powered on.

⚡ Why Choose This Kit?

• 🔌 Plug and Play: No wire cutting or splicing is normally required.
  🔋 Universal Controller: Supports 36V, 48V and 52V setups.
  ⚙️ Wide Compatibility: Designed for rear dropouts measuring approximately 135–148mm.
  🚴 HG Cassette Compatible: Suitable for 7–11-speed cassettes.
  🚀 Powerful Performance: Ideal for trails, private land and serious off-road riding.

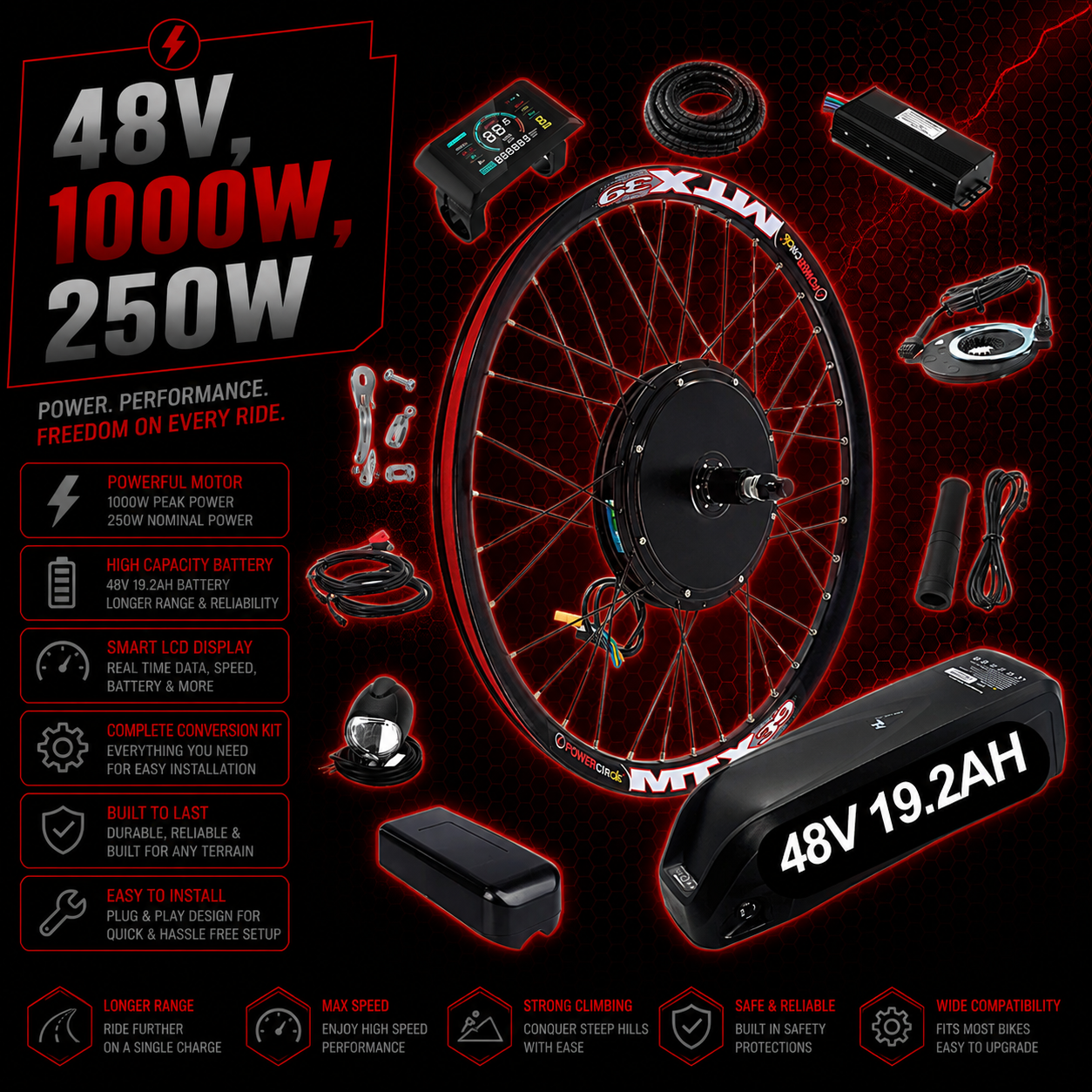

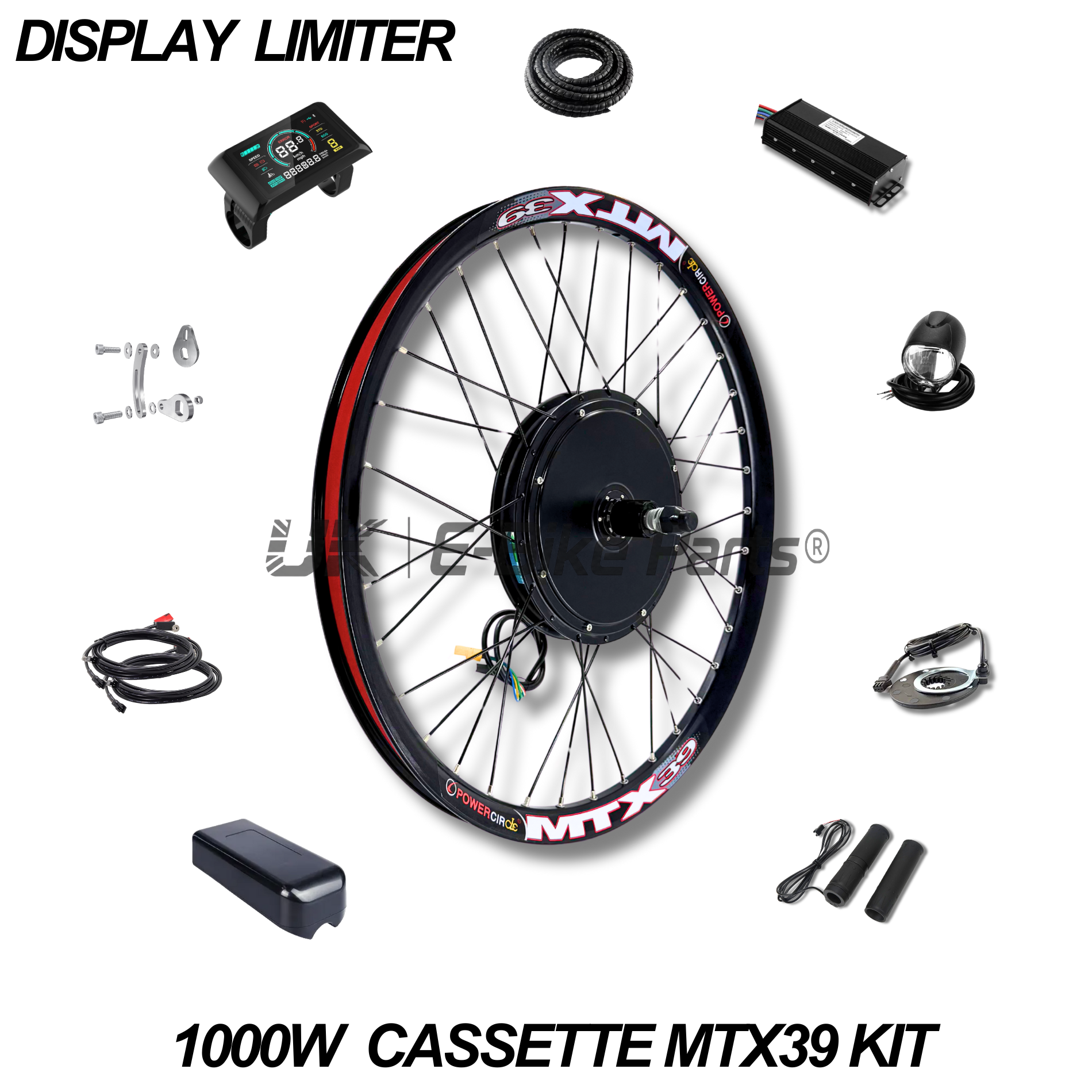

📦 What’s Included?

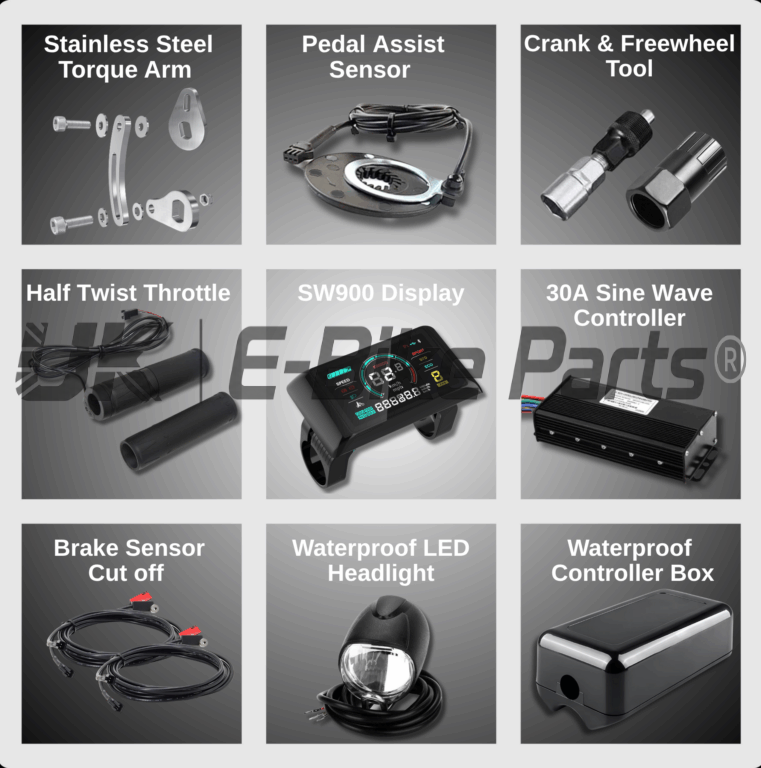

• 🛞 Kit Only Variations

  If you select a variation marked “Kit Only”, the following conversion-kit parts are included:

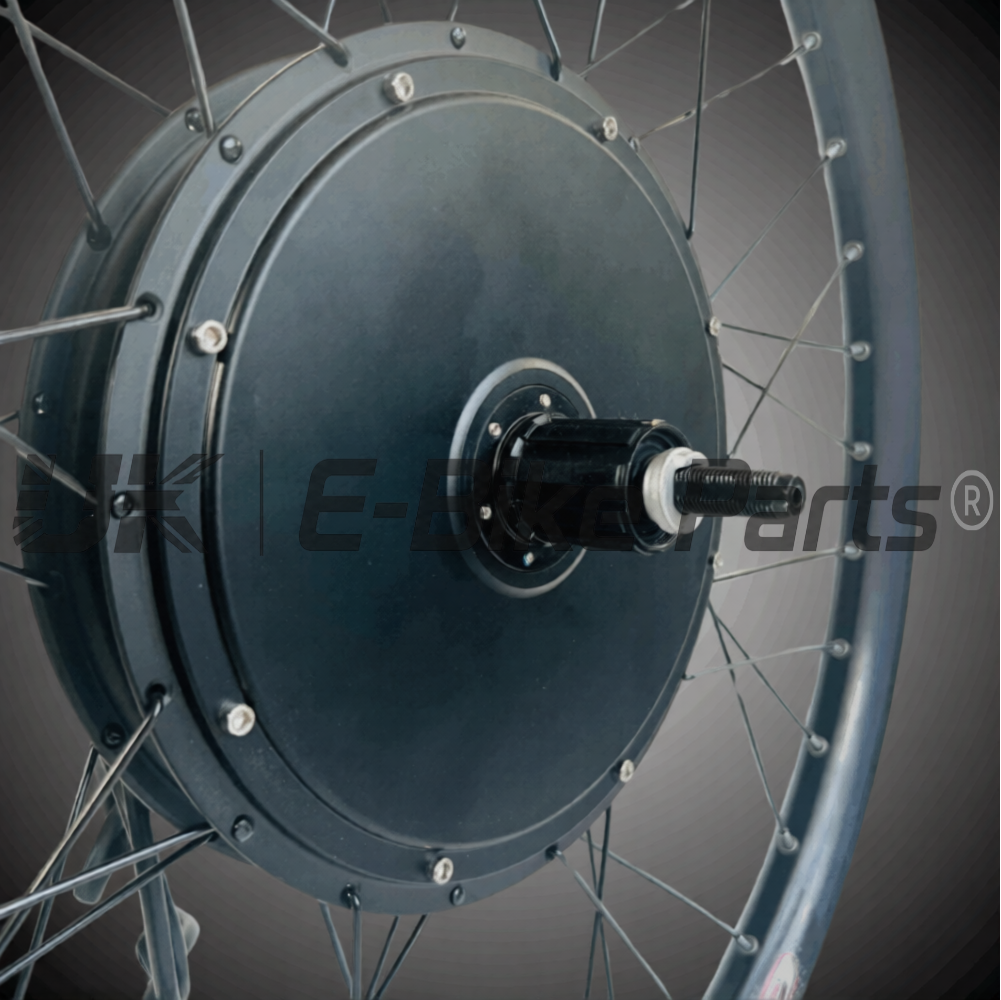

  ⚡ 1000W Brushless Gearless Rear Hub Motor
  ⚙️ HG Cassette Body, suitable for 7–11-speed cassettes
  🛞 MTX39 Lightweight Double-Wall Aluminium Rim
  🔩 36 Stainless-Steel Spokes, finished in black
  📱 Full-Colour SW900 LCD Display with 5V 1A USB charging port

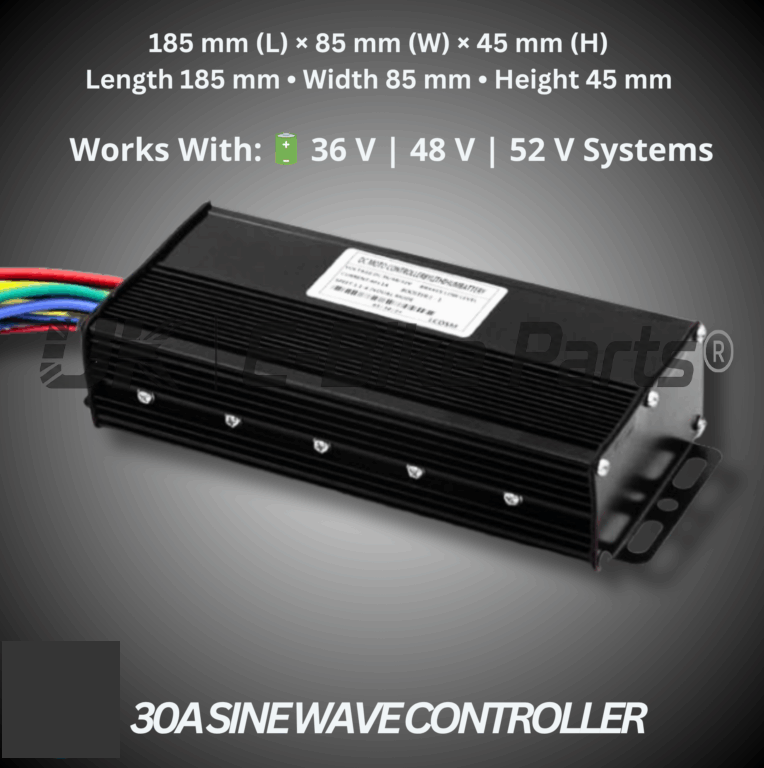

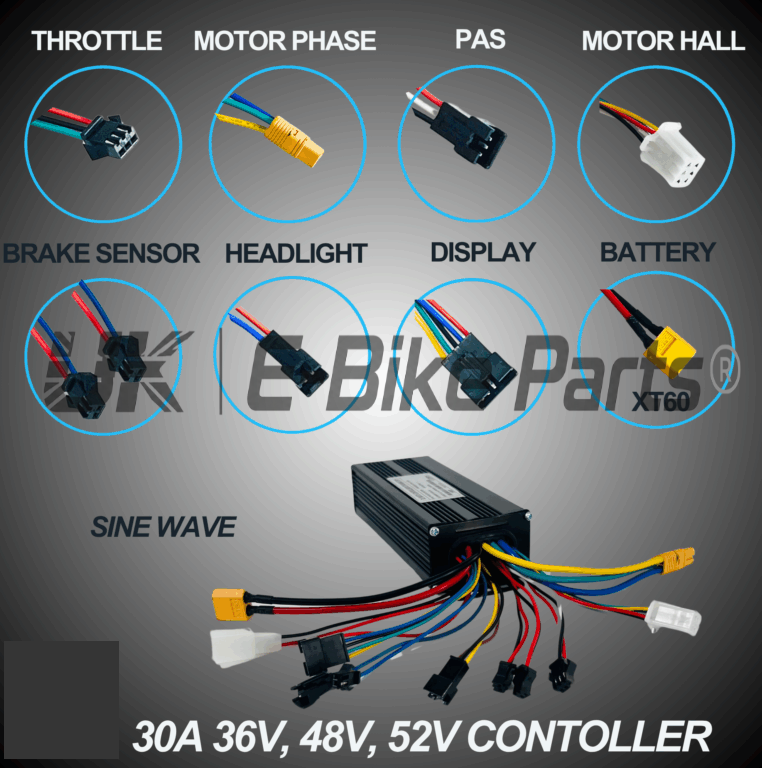

  🎛 30A DC MOTO Sine-Wave Controller, compatible with 36V, 48V and 52V batteries
  💡 Headlight, controlled through the display

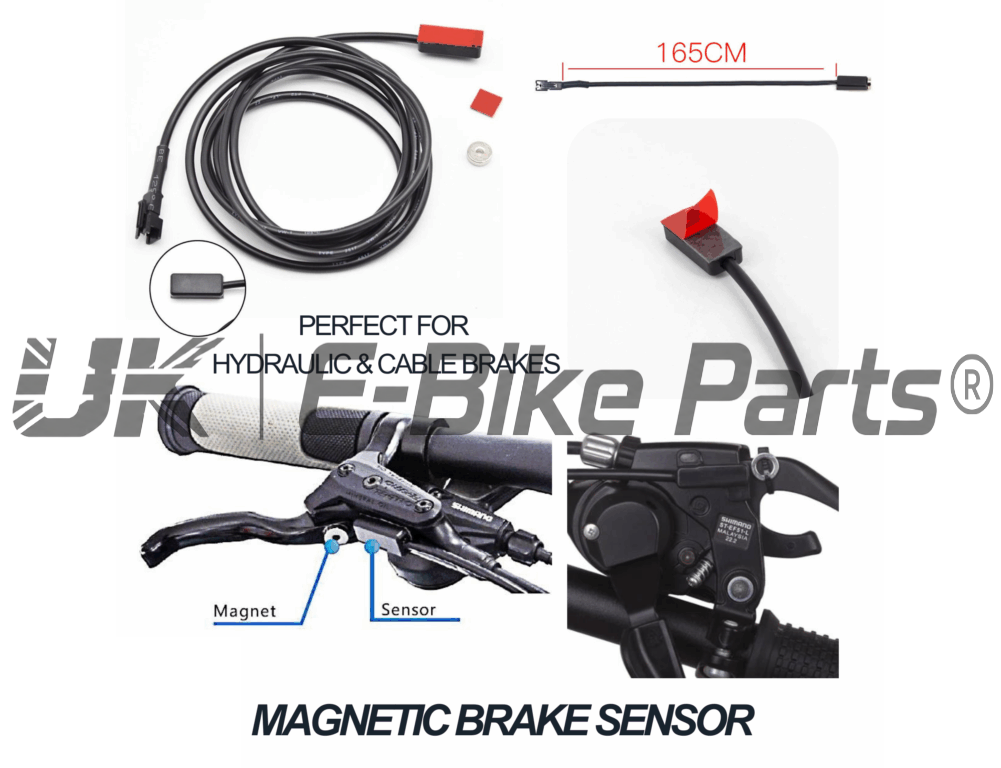

  🛑 Magnetic Brake Sensors, suitable for most hydraulic and cable-operated brakes

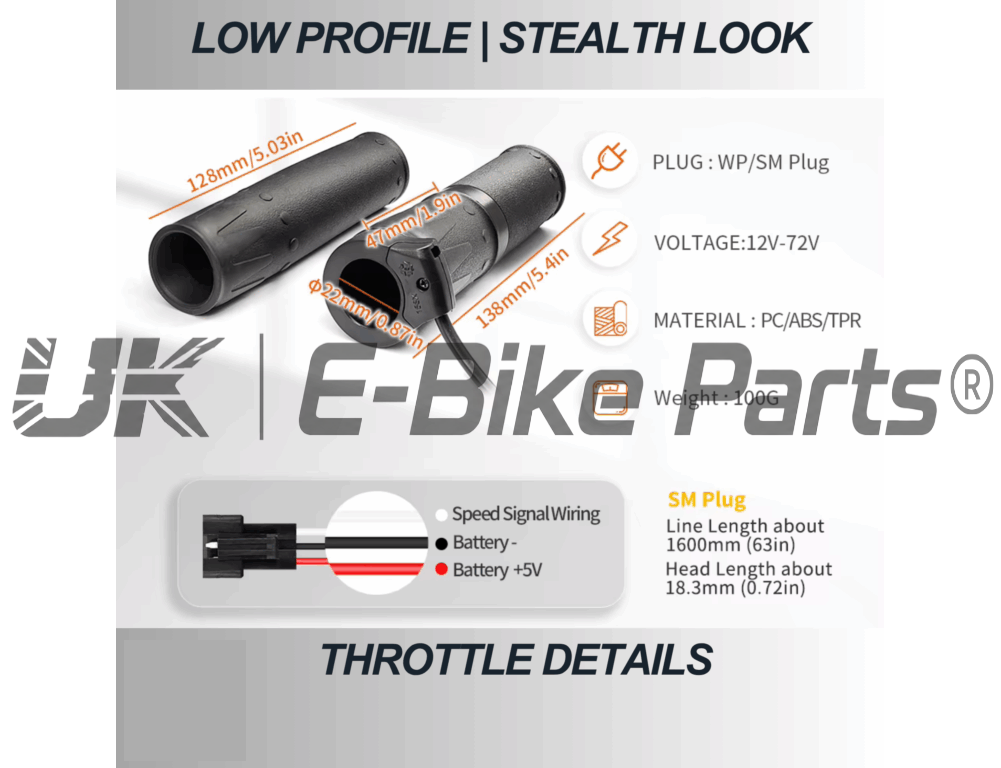

  🌀 Half-Twist Throttle and Matching Left Grip
  🚴 Pedal Assist Sensor

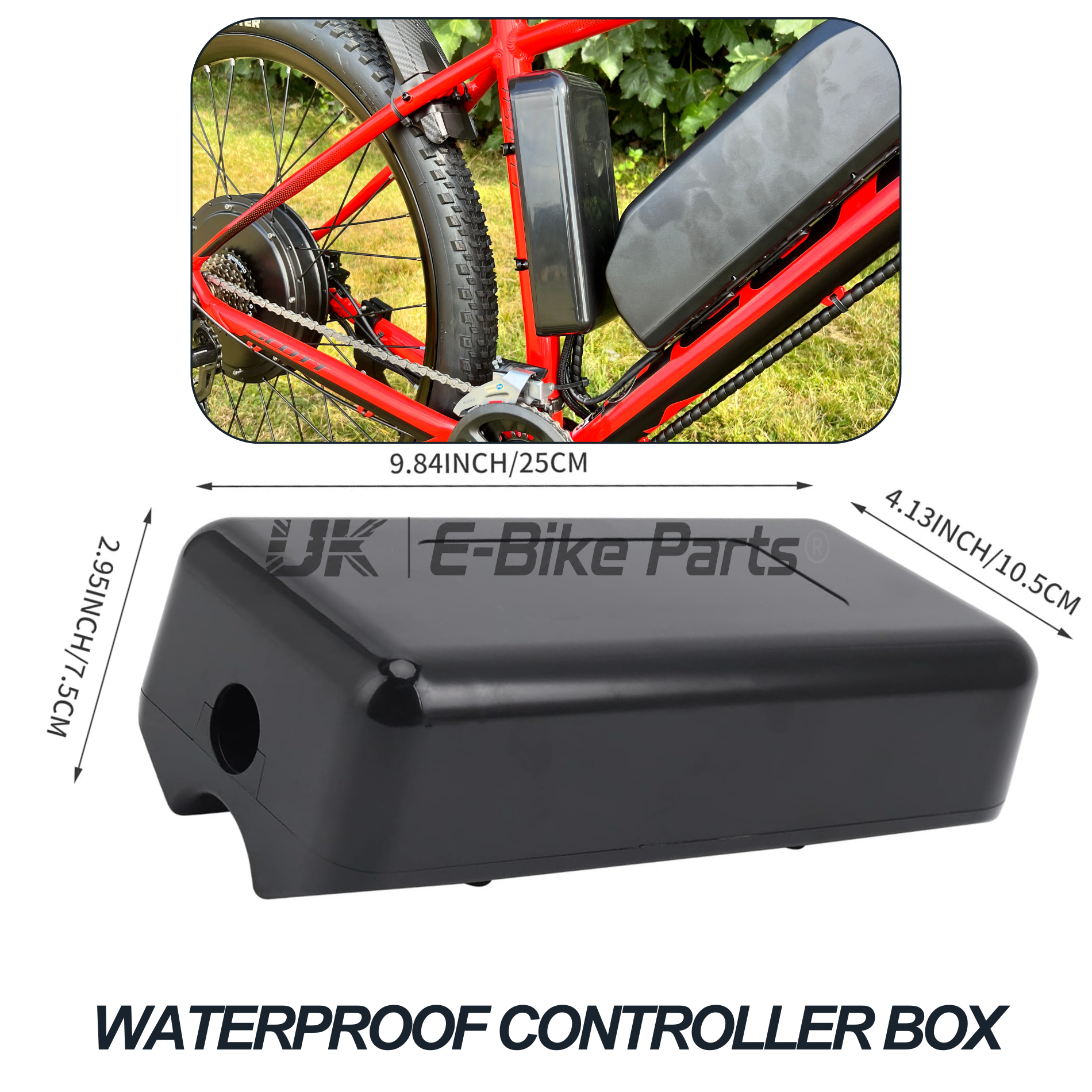

  🛡 Waterproof Controller Box
  🔧 Two Stainless-Steel Torque Arms
  🛠 Cassette Installation and Removal Tools
  🧰 Accessories: Cable ties, cable wrap, tyre levers and crank-removal tool ❌ The battery and battery charger are not included with Kit Only variations.

  🔋 Kit + Battery Variations
  If you select a variation marked “Kit + Battery”, you will receive everything listed in the Kit Only section, plus:

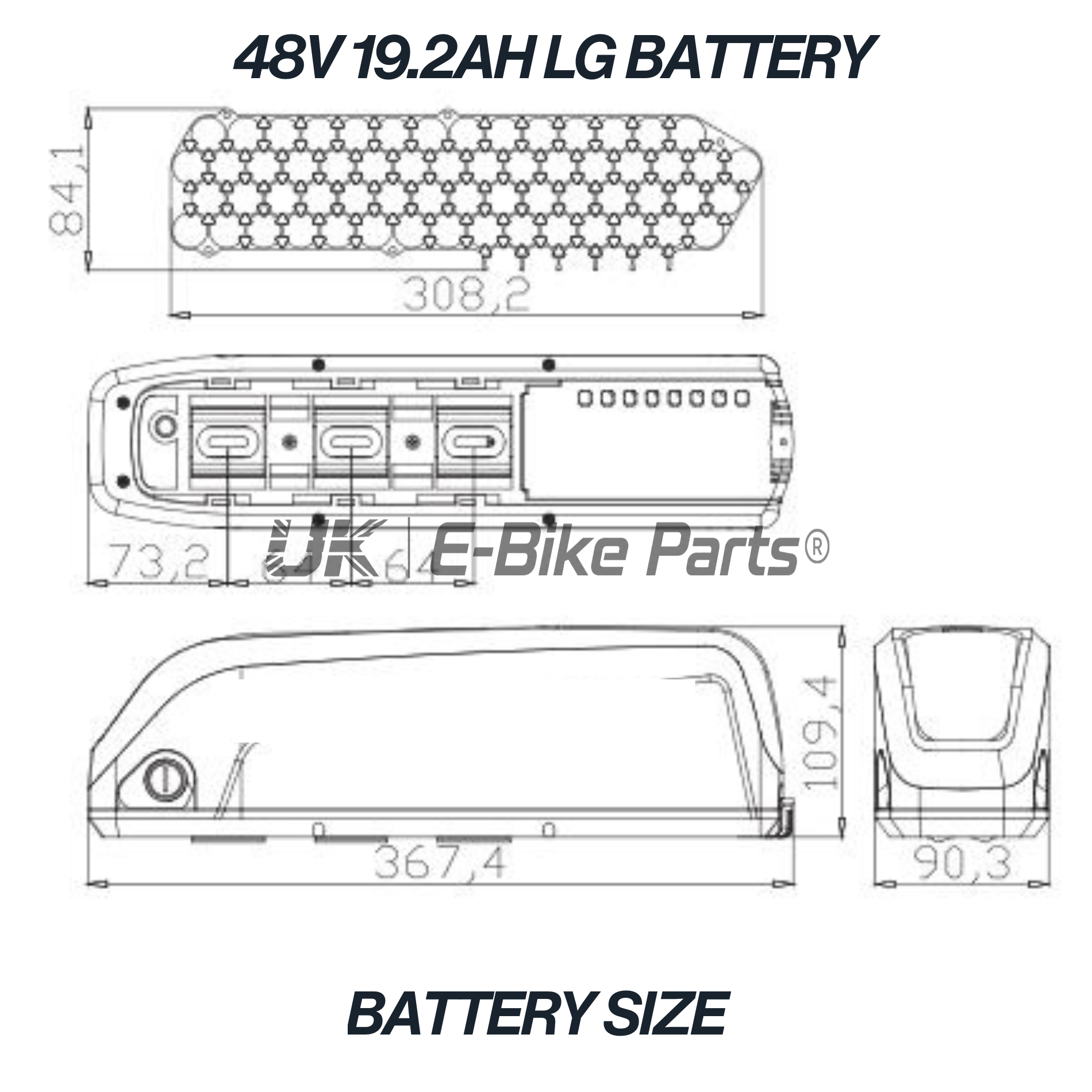

  🔋 48V 19.2Ah LG Battery with 30A BMS
  🔌 3A UK Battery Charger
  ⏱ Approximate charging time of around 8 hours, depending on the battery’s remaining charge
  ✅ The battery and charger are only included when a Kit + Battery variation has been selected.

⚙️ Cassette Compatibility

• The motor uses a cassette-style HG freehub body and is best suited to bikes that already use a cassette. It supports most 7–11-speed cassettes. A spacer may be required when fitting certain 7-speed cassettes.

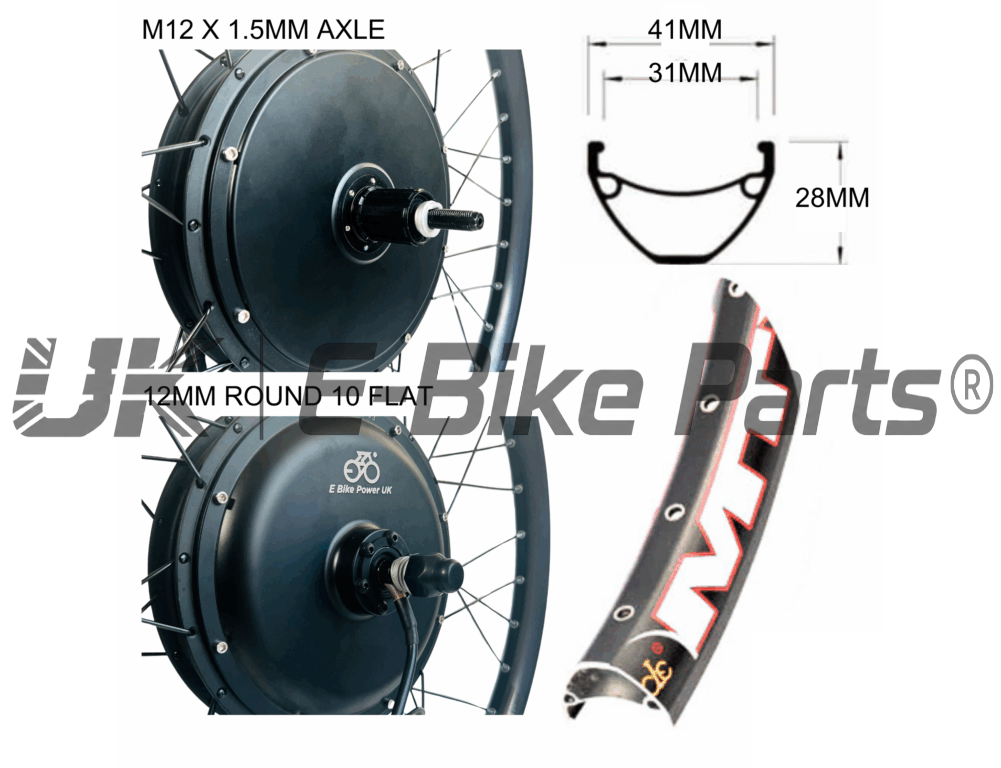

  The motor features an M12 axle, designed to provide a secure fit inside a suitable slotted rear dropout for improved alignment and power transfer.

  Please note that the cassette itself is not included. The tools required to remove your original cassette and install it onto the new motor wheel are supplied with the kit.

❓ Common Questions

• ✔️ The kit can operate with or without the pedal-assist sensor.
  ✔️ The kit can operate with or without the brake sensors.
  ✔️ Throttle-only operation is supported when the limiter is not active.
  ✔️ The system will still operate if you choose not to install every optional feature.
  ⚠️ Basic bicycle-maintenance and DIY skills are required for installation.
  ⚠️ Please confirm that your bike has suitable slotted rear dropouts before ordering.

🛡 Warranty

• 🔧 3-month warranty on conversion-kit components
  🔋 12-month warranty on the battery, when a battery variation is selected
  ❌ Warranty excludes misuse, water damage, wear and tear, unauthorised modifications and incompatible aftermarket parts.

⚖️ Legality

• ✅ Limiter restricts assistance to approximately 15.5mph / 25km/h
  ✅ Throttle is disabled while the limiter is active
  ✅ Output is capped to a 250W equivalent while limited
  ⚠️ The kit is supplied unrestricted and must be placed into limited mode for compliant road use where applicable.
  Please check and follow all local e-bike laws and regulations. We accepts no liability for unlawful or inappropriate use.

🛠 Installation Tips

• 🔩 Check the axle nuts and torque arms regularly.
  🔌 Protect the motor cable carefully during installation.
  🛞 Consider using puncture-resistant or sealant-filled inner tubes.
  ⚙️ Remove the brake caliper before fitting the motor wheel.
  🔧 Apply suitable thread-locking compound to the brake-rotor bolts.
  🔩 Install both supplied torque arms for additional security.
  🛠 Recheck the spoke tension after the first few rides.

🚚 Shipping & Returns

• 📦 Orders dispatched within 24 hours (Mon–Fri) if ordered before 1PM
• 🚛 Carriers: Royal Mail, DPD or FedEx (Tracked)
• ⏱️ Estimated delivery: 1–2 working days
• ↩️ 30-day FREE returns – Buyer pays postage – Item must be returned in new condition

🤝 Need Help?

• We aim to respond to all messages within 24 hours Monday–Friday 9am – 6pm and some weekends. Our team is always friendly & customer-focused, here to help with your e-bike build. 💬
