52V Triangle Downtube Electric Bike Battery 25Ah LG MLT Cells 250W-3000W UKCA

🔋 52V 25Ah Compact Wedge Battery • LG 50MLT Cells • 60A BMS

Premium Compact Wedge Battery • Designed For Small & Medium Frame Bikes

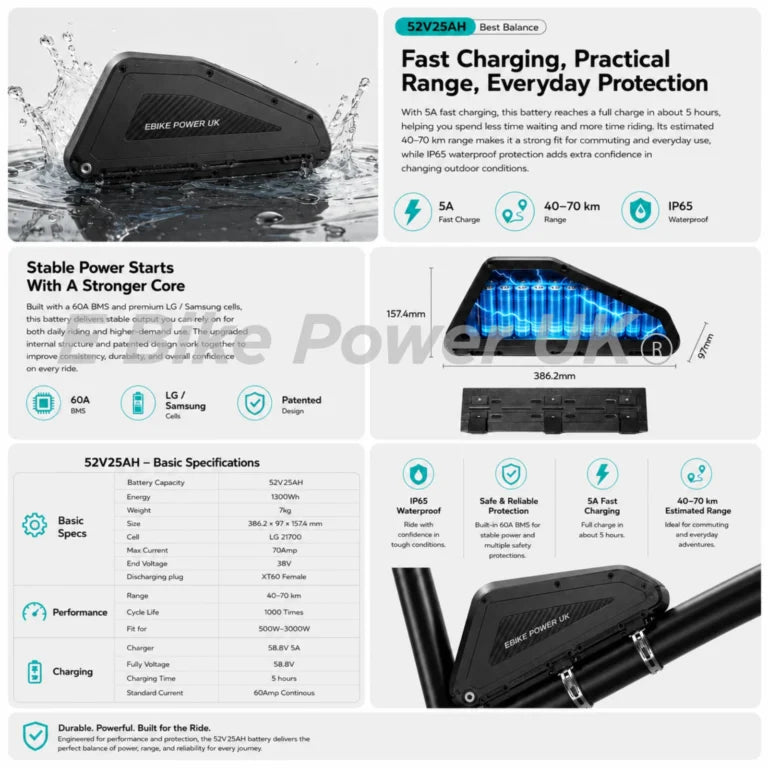

📐 Specification

• 🔋 52V 25Ah Compact Wedge Battery
  ⚡ Approx. 1300Wh Capacity
  🧪 Grade A LG INR21700-50MLT Cells
  🔋 21700 Cell Format
  ⚡ 60A Smart BMS (NOT BLUETOOTH)
  🔌 5A Fast Charger Included
  📱 USB-C Output Port
  🔘 On / Off Power Switch
  📊 LED Display Showing Voltage & Battery Percentage
  📦 Compact Hard Plastic Wedge Case

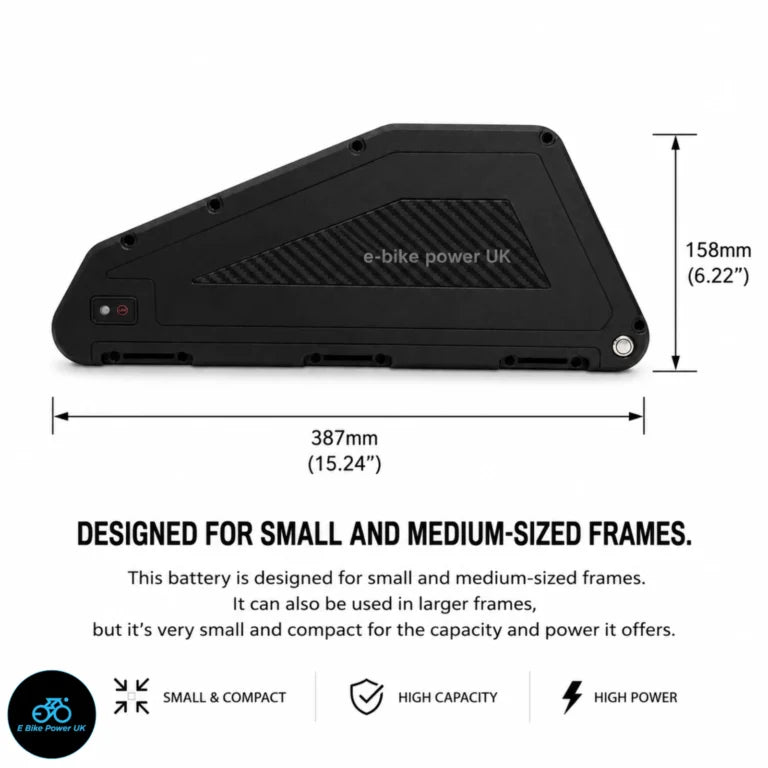

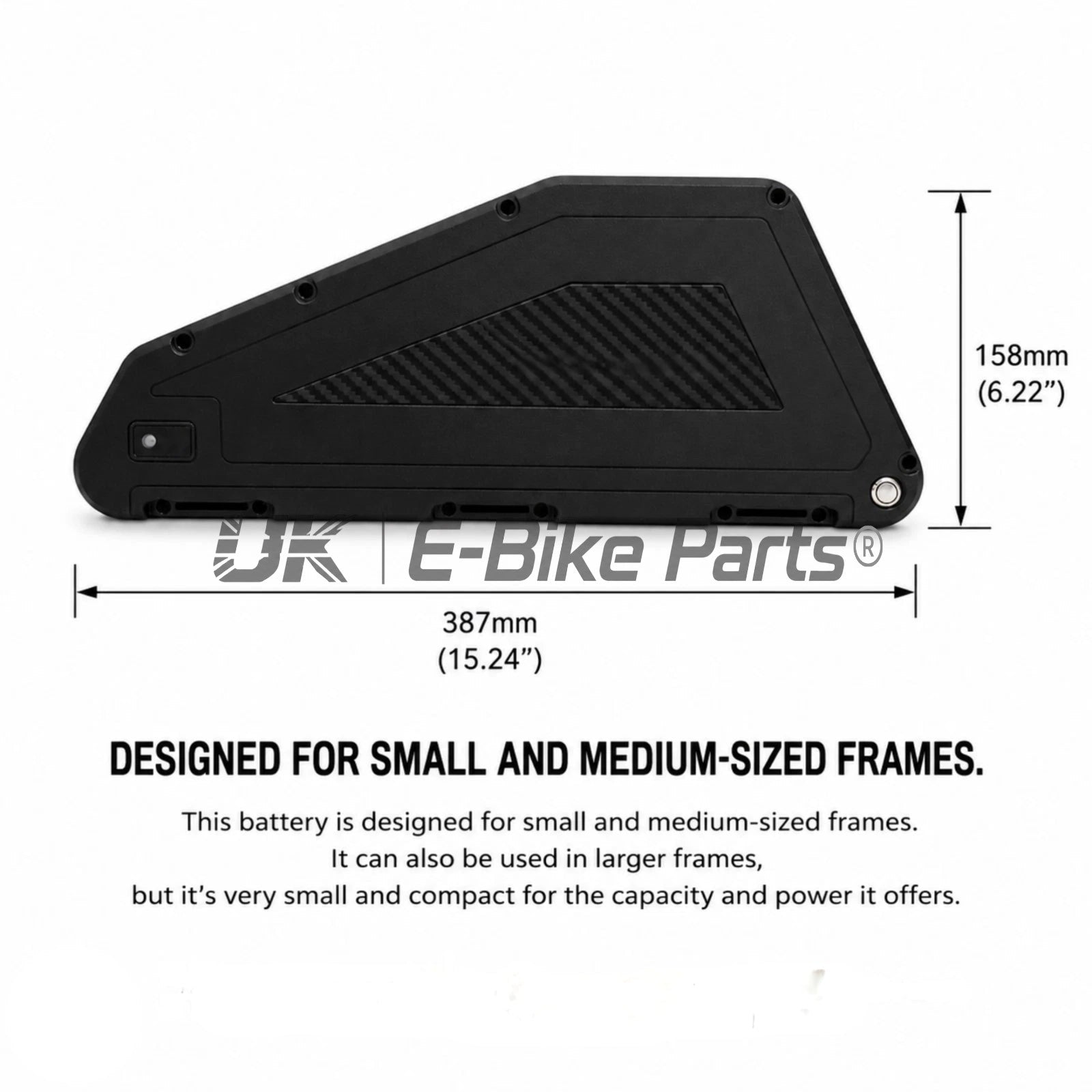

  📏 Length: 387mm / 15.24 inches
  📏 Height: 158mm / 6.22 inches
  📏 Width: 110mm / 4.33 inches
  ⚖️ Approximate Weight: 7kg
  🚲 Designed For Small & Medium Sized Bicycle Frames
  🚲 Can Also Be Used On Larger Frames If Required

⭐ Key Features

• ✔️ Grade A LG 50MLT 21700 Cells
  ✔️ 60A Continuous BMS
  ✔️ Compact Hard Case Wedge Construction
  ✔️ LED Voltage Display
  ✔️ Battery Percentage Indicator
  ✔️ USB-C Port
  ✔️ On / Off Power Switch
  ✔️ Removable Battery Design
  ✔️ Battery Can Be Removed By Undoing 6 Mounting Bolts
  ✔️ Suitable For Frame Mounting Or Triangle Battery Bag Installation
  ✔️ Compact Shape Makes Installation Easier On Smaller Frames
  ✔️ Designed Specifically For Traditional Pedal Bike Conversions
  ✔️ Clean Installation Options Available

🧪 LG M50LT Cell Information

• 🇰🇷 Manufactured in South Korea
  🔋 Nominal Cell Capacity: 5000mAh
  ⚡ Nominal Voltage: 3.69V
  ⚡ Energy Per Cell: 18.2Wh
  🔥 Maximum Continuous Discharge: 14.4A
  📈 Energy Density: 270Wh/kg
  ⚙️ Power Density: 787W/kg
  ✅ Designed For High Capacity Applications
  ✅ Long Service Life

📦 What's Included

• 🔋 1 × 52V 25Ah Wedge Battery

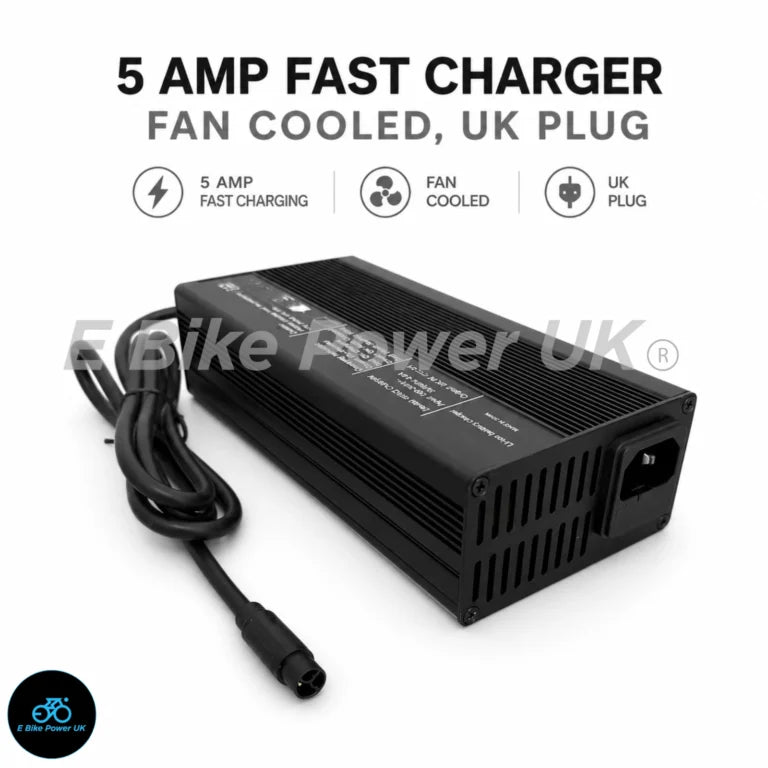

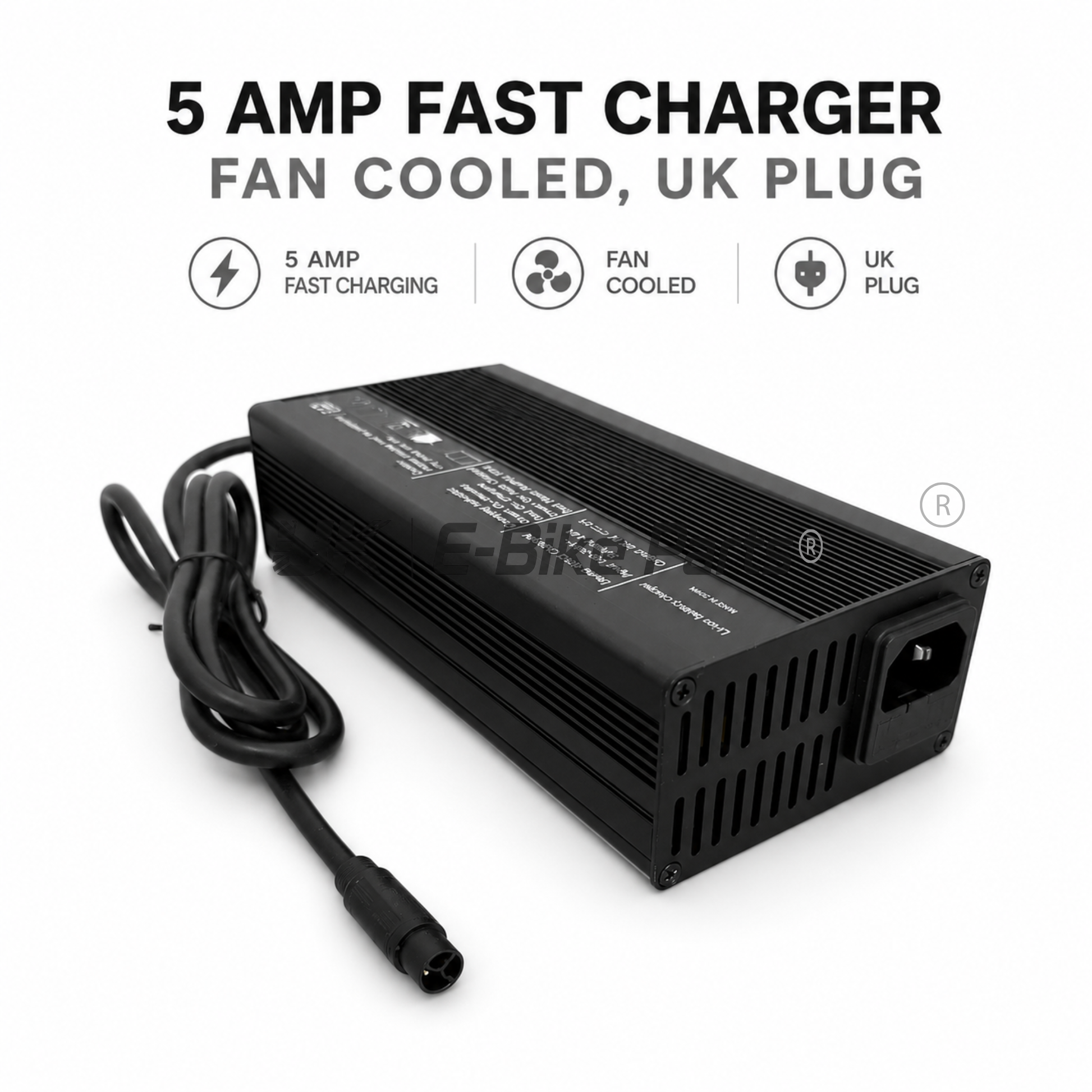

  🔌 1 × 5A Fast Charger (UK Plug)

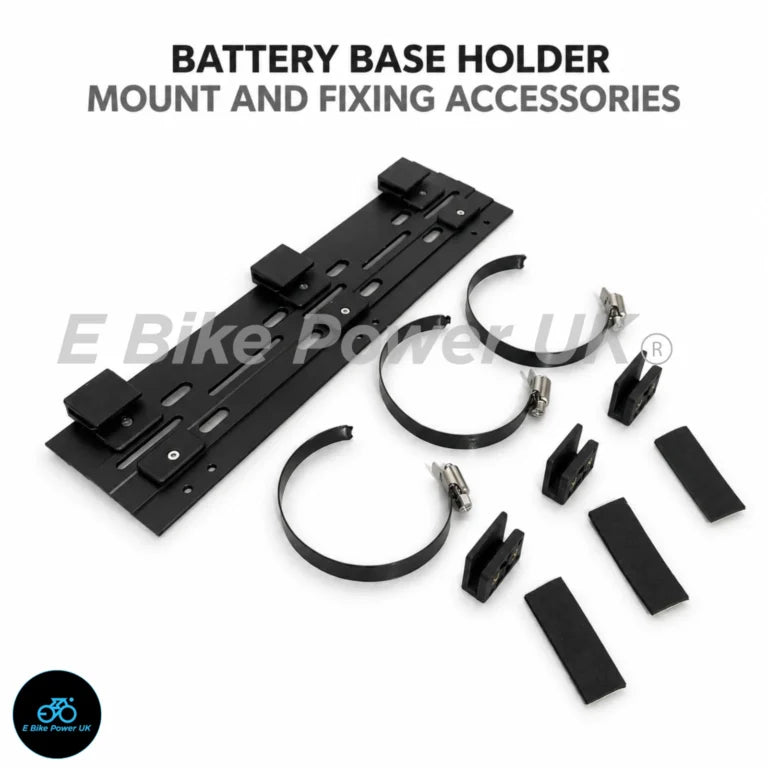

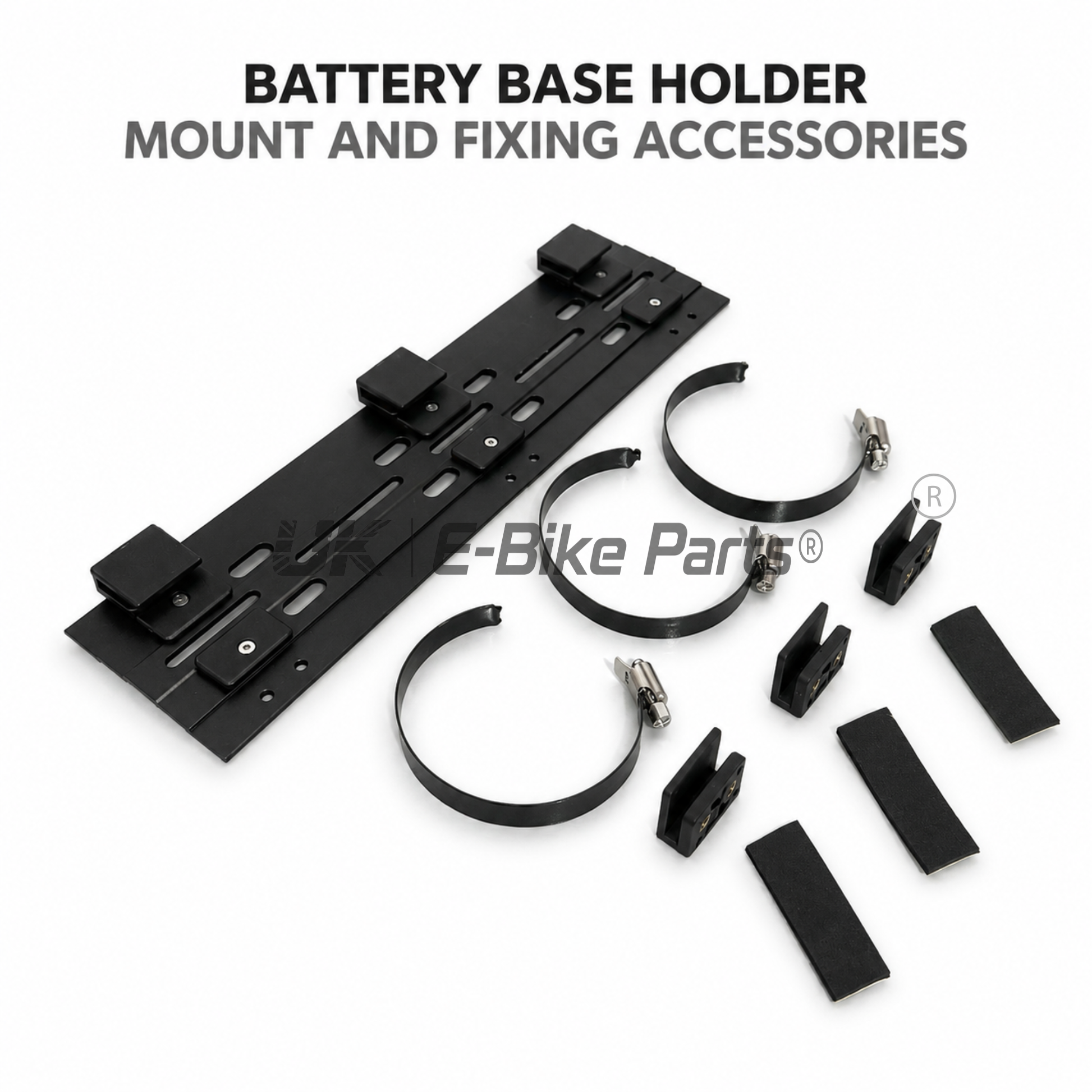

  🧩 1 × Battery Base Mount
  🔩 Mounting Hardware
  🪢 Heavy Duty Cable Ties

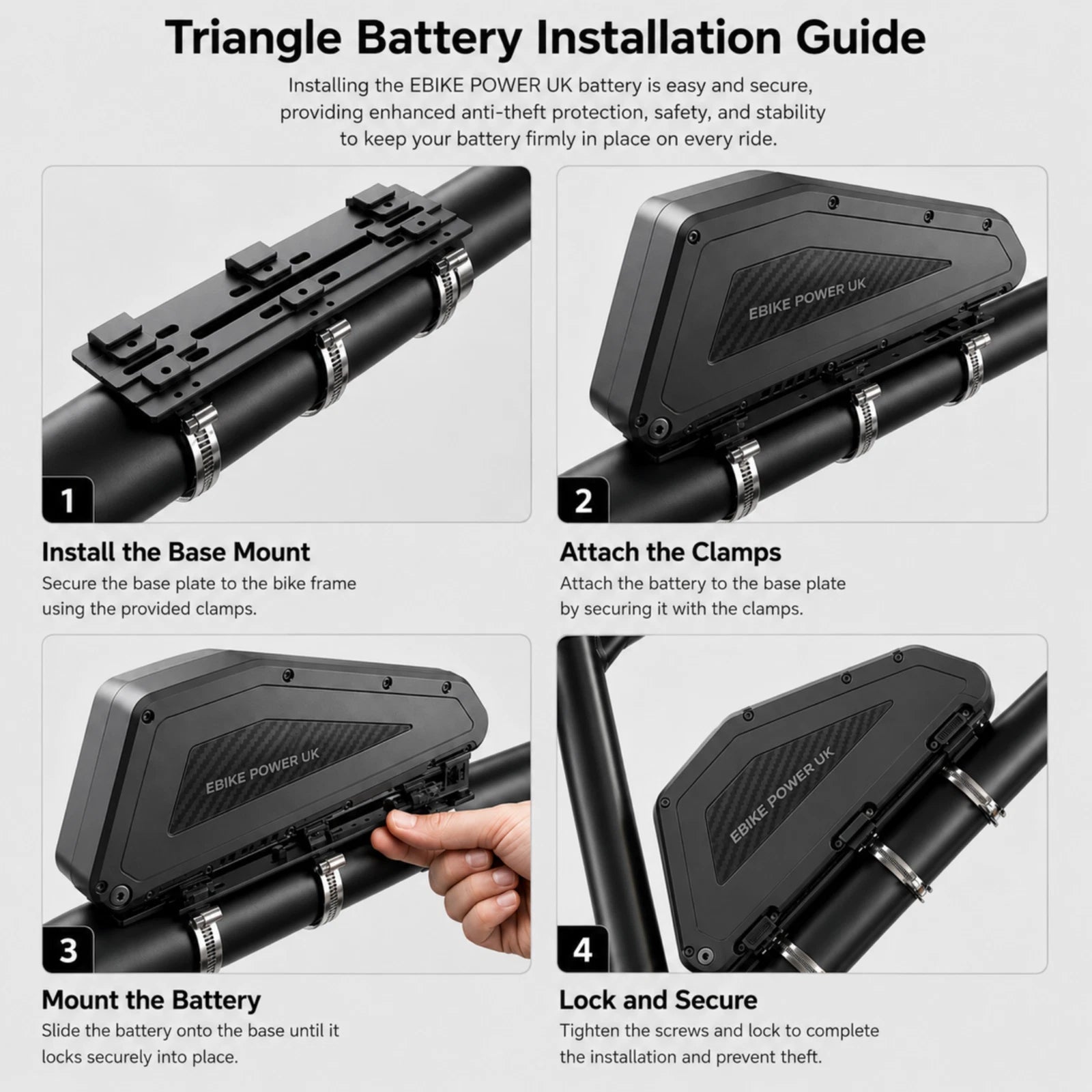

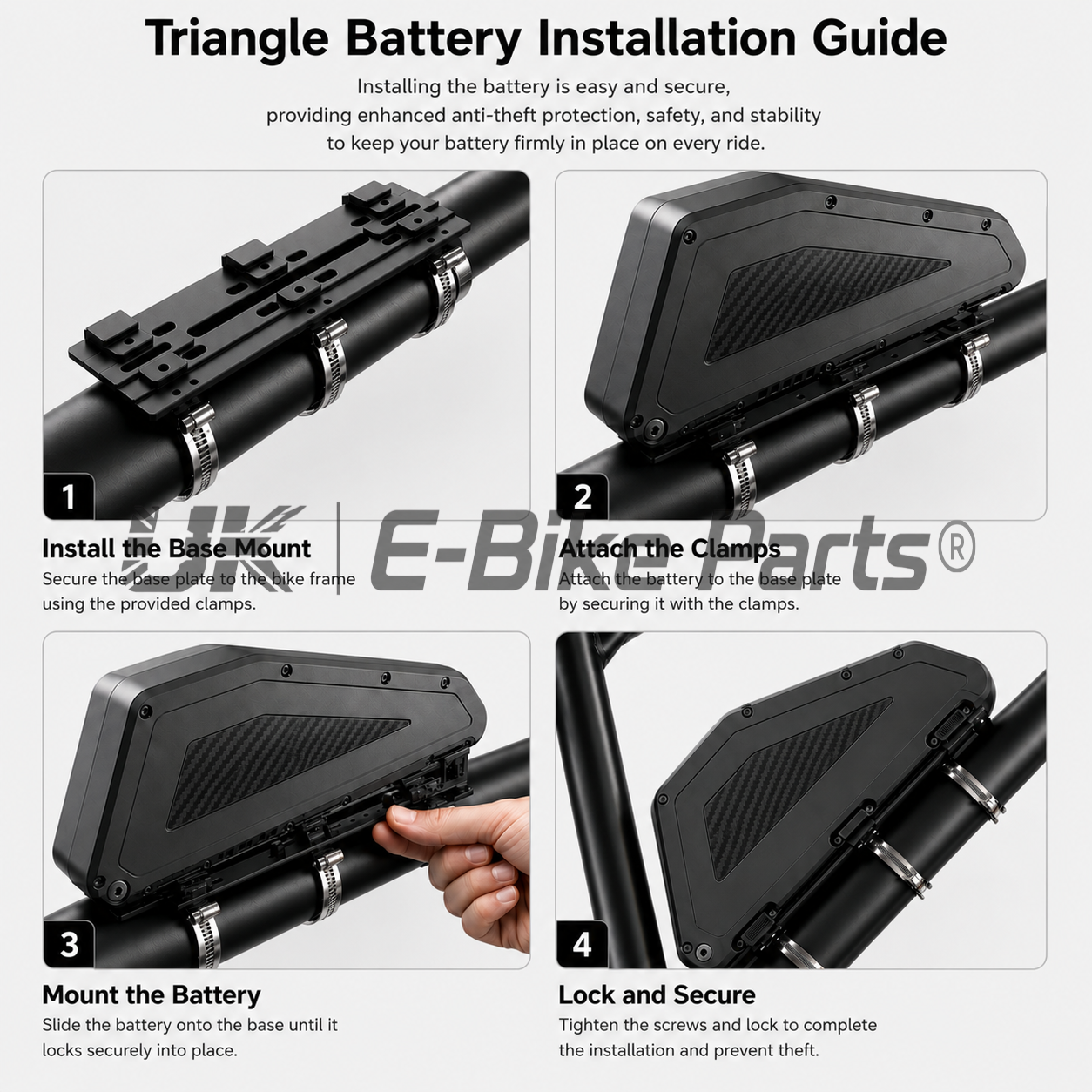

📐 Fitment & Installation Notes

• ⚠️ Important Fitment Notice:
  This battery is designed primarily for small and medium sized bicycle frames. It can also be fitted to larger frames if required, but customers must ensure the battery base is mounted securely and safely. The battery is removable, but it requires six bolts to be undone in order to remove it from the base. This battery can also be installed inside a suitable triangle battery bag if preferred. Securing the battery base correctly is crucial. Most pedal bikes only have two bottle cage mounting holes, however this battery base requires stronger support than standard bottle cage mounts. We recommend using at least four mounting points where possible. If your frame does not have enough mounting holes, heavy-duty jubilee style clamps or equivalent secure mounting hardware should be used. The battery base must be properly secured to ensure the battery remains safely attached to the bike during use.

📸 Important Product Notice

• ⚠️ Please Note:
  The branding, logo design, stickers, labels or cosmetic appearance of the battery may differ slightly from the images shown depending on the production batch and stock available at the time of dispatch. Specifications, capacity, cell type and performance remain unchanged.

✅ Certification & Compliance

• ✔️ UKCA Certified
  ✔️ CE Certified
  ✔️ UN38.3 Tested
  ✔️ IEC 62133 Compliant
  ✔️ MSDS Documentation Available
  ✔️ Manufactured Using Grade A LG Cells

⚠️ Lithium Battery Safety

• ⚠️ Never leave batteries charging unattended.
  ⚠️ Only use the charger supplied or approved for this battery.
  ⚠️ Do not puncture, crush or expose to fire.
  ⚠️ Do not use if damaged, swollen or water affected.
  ⚠️ Store in a cool dry location away from heat sources.
  ⚠️ Keep away from children.
  ⚠️ Installation should be carried out by a competent person.
  ⚠️ Follow all supplied instructions before use.

🛡️ Warranty

• ✔️ 12 Month Warranty
  ❌ Water Damage Not Covered
  ❌ Physical Damage Not Covered
  ❌ Modified Wiring Or Connectors Void Warranty
  ❌ Removal Of Labels Or Identification Marks Void Warranty
  🧰 Warranty Repairs Carried Out By UK E-Bike Parts®
