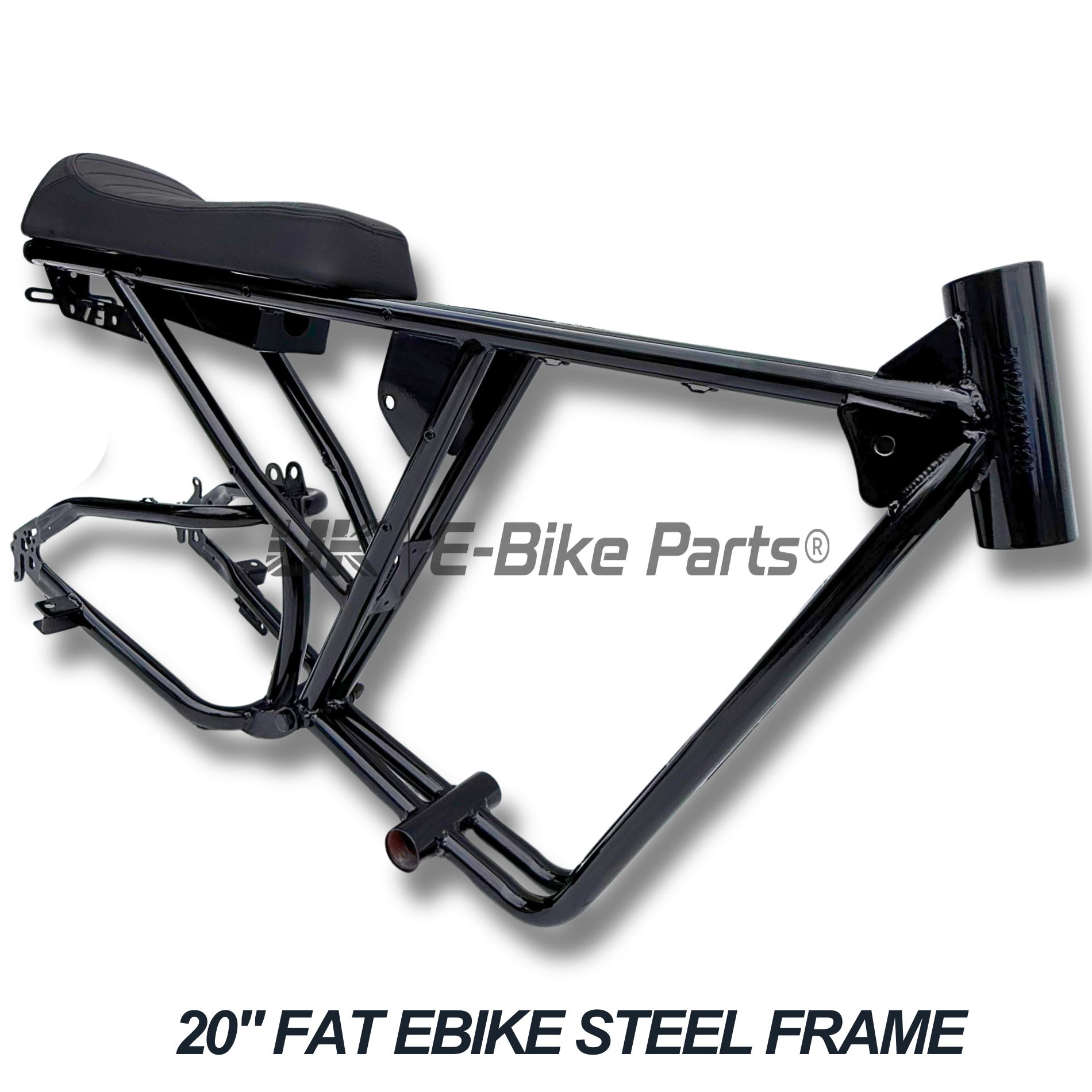

Custom Steel Fat E Bike Frame Full Suspension 20 Inch x 4 Inch Wheels Super 73

🖤 Super73-Style Fat E-Bike Frame | Gloss Black

✨ Brand New

• 🖤 Sturdy Gloss Black Steel Frame – inspired by the iconic Super73 look
  📏 One Size – versatile for custom builds
  🛞 Suits 20″ x 4″ Fat Bike wheels
  💺 Includes seat + mounting bolts for easy installation
  👨‍👦 Extended seat design – suitable for two riders (e.g. adult & child)
  🔧 Rear suspension – requires a 280mm rear shock (not included)
  ⚙️ 175mm dropout | 120mm bottom bracket
  🎯 Straight 1 1/8″ head tube (28.6mm) – stable & comfortable geometry
  ⚡ Best suited for 250W – 1500W motors
  🔩 Integrated foot peg mounts (pegs not included)
  📦 Fully tracked shipping

🔧 Technical Specifications

• 🔹 Head Tube: Straight 1 1/8″ (28.6mm steerer compatible)
  🔹 Rear Shock Size: 280mm (corrected specification)
  🔹 Top Tube Length: 430mm (steerer to seat)
  🔹 Dropout: 175mm spacing
  🔹 Axle Compatibility:
  • M16 – 16mm round / 10mm flat
  • M14 – 14mm round / 10mm flat
  • M12 – 12mm round / 12mm flat

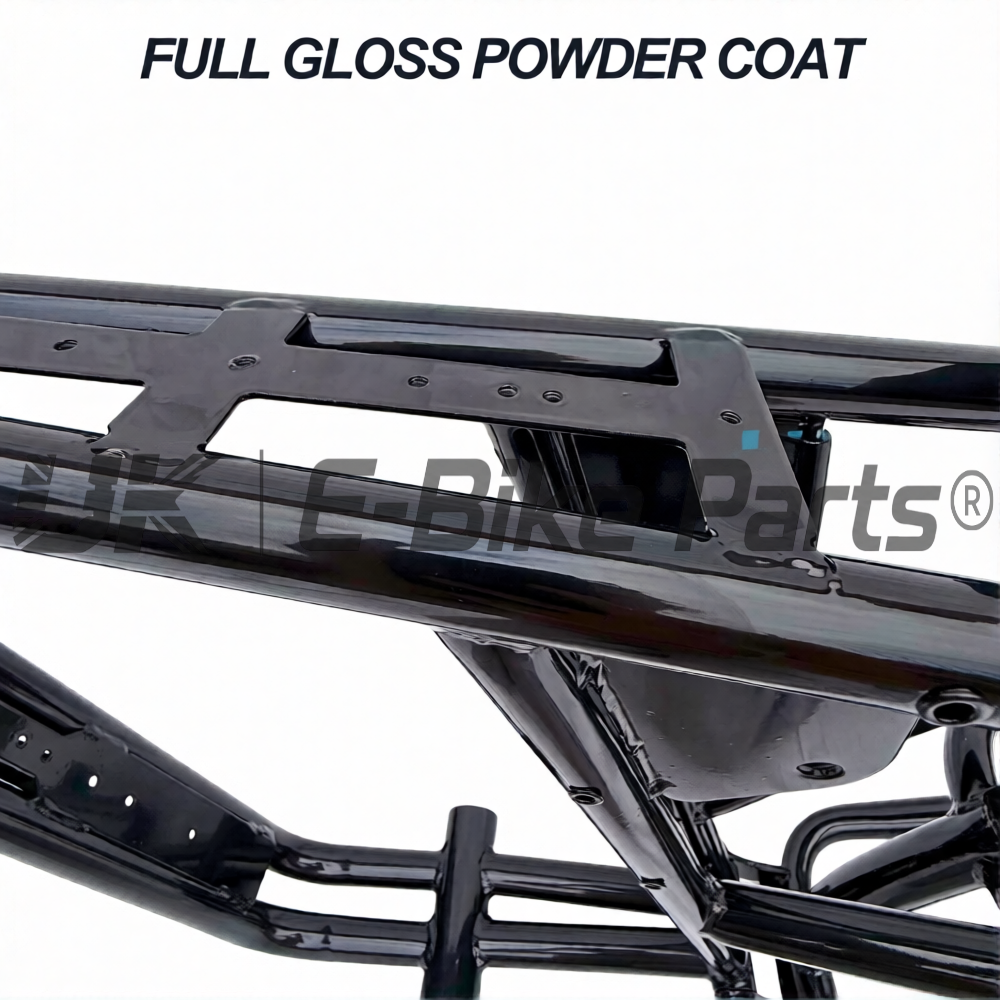

  🔹 Battery Mount Plate:
  • 6 mounting holes
  • 64mm spacing
  • Designed for Hailong / Polly downtube batteries (M5 thread)
  • Additional holes can be drilled if required
  🔹 Top Tube Battery Option:
  • Space available (420MM) for an additional battery mount
  • Requires drilling, tapping & rivnuts for installation
